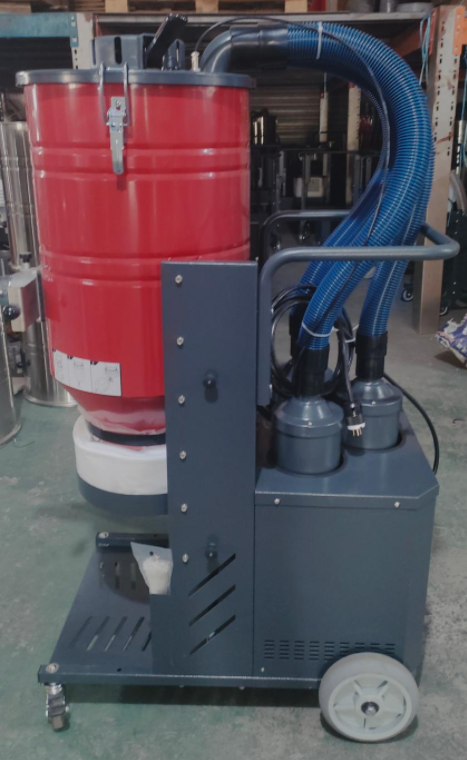

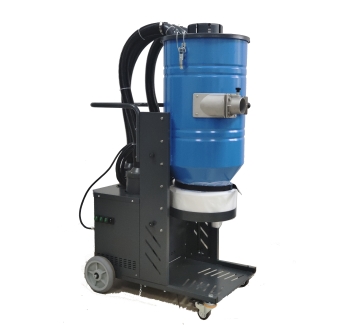

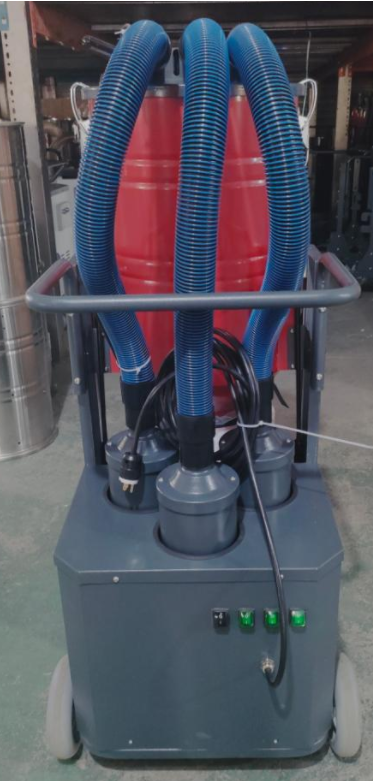

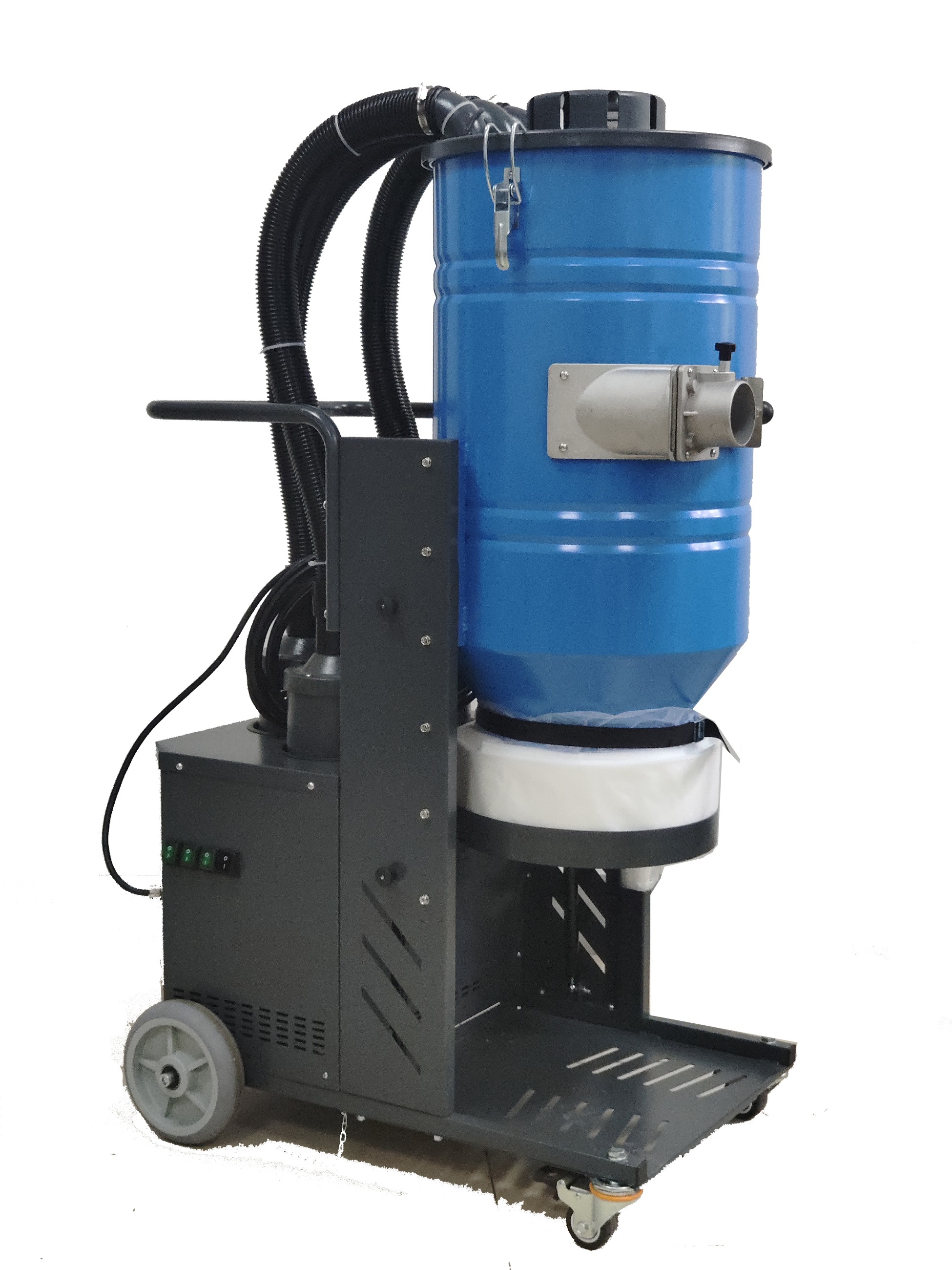

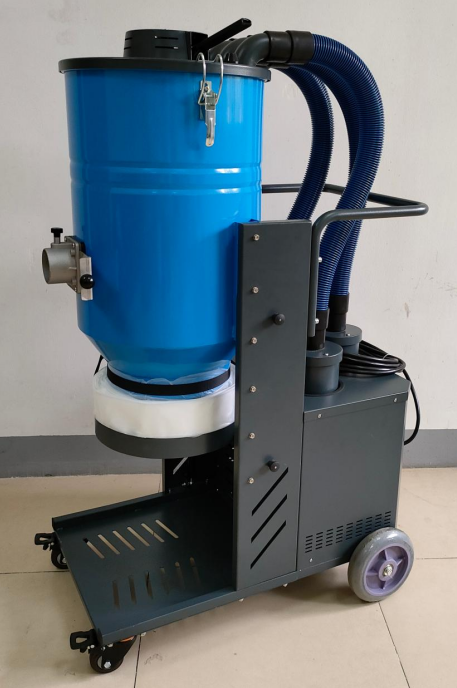

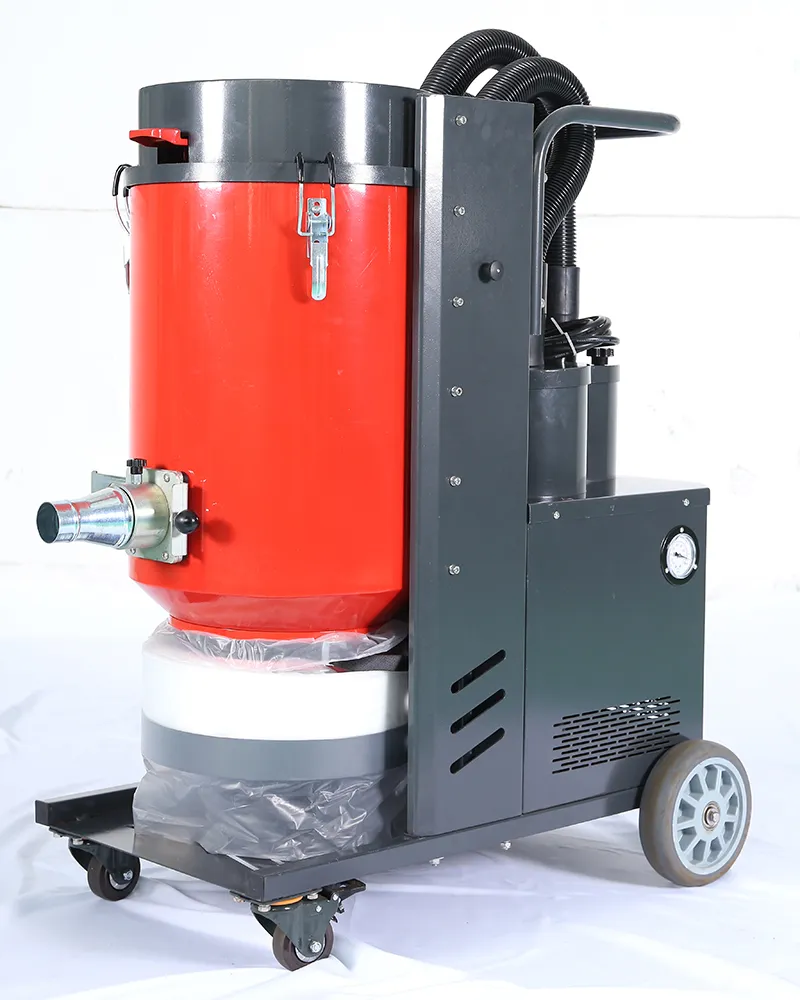

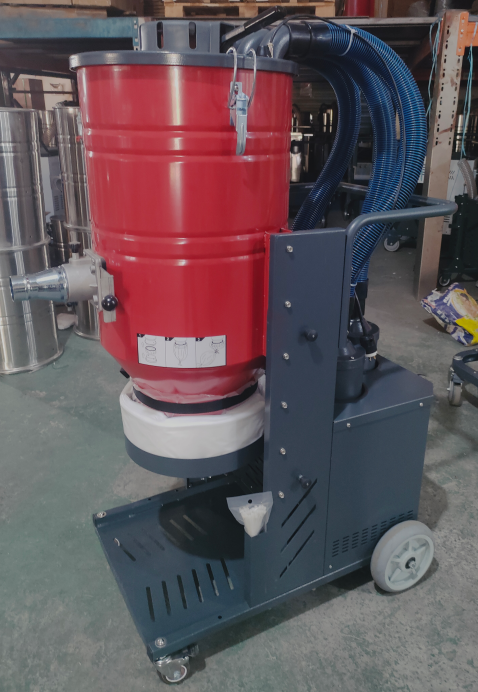

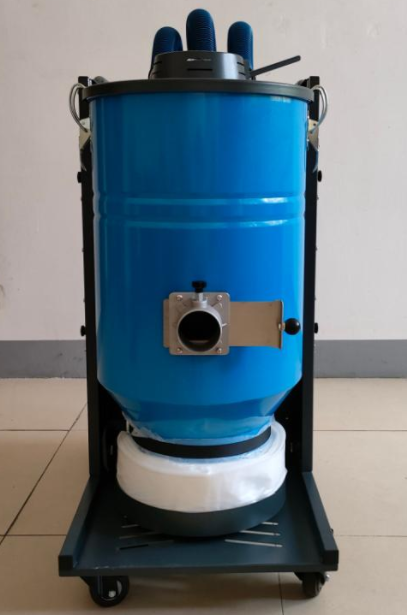

EFV36 110V/220V single phase dust collector
The EFV36 is a concrete dust extractor integrated with a cyclone separator.

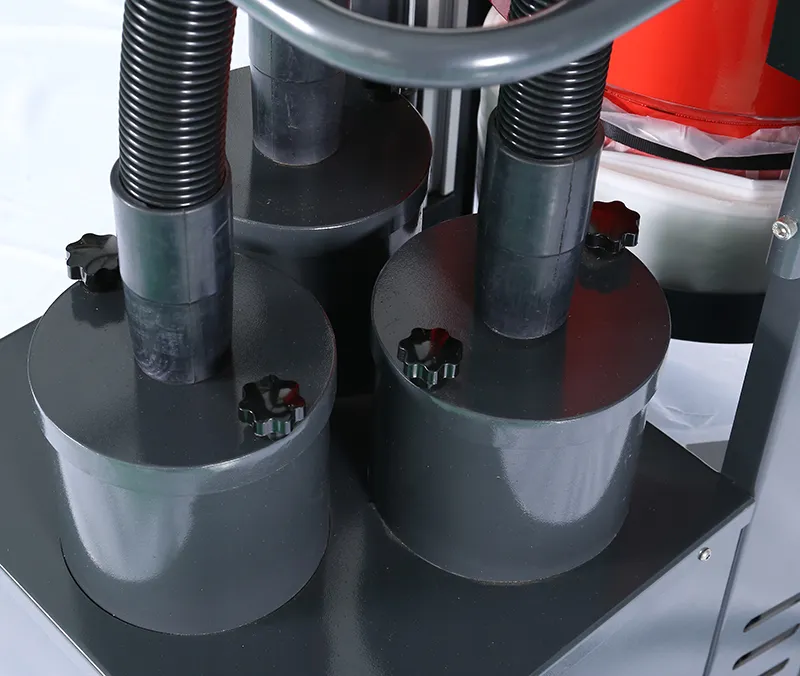

With 3 large Ametek motors which has plenty power to be connected to any
mid or larger size grinders ,scarifiers, shot blasters to extract freshly cut, friable concrete
dust.Withcycloneseparator,filteringmorethan98%dust,makefewerdusttoenter
invacuumcleaner,prolongthevacuumsworkingtime,protectthefiltersinvacuumandextendthelifetime.
dust.Withcycloneseparator,filteringmorethan98%dust,makefewerdusttoenterinvacuumcleaner,
prolongthevacuumsworkingtime,protectthefiltersinvacuumandextendthelifetime.
Specification:
Model | Unit | EFV36M | EFV36M | EFV36A | EFV36A | EFV36P | EFV36P |
Voltage | V | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ |
Power(kw) | KW | 3.6 | 2.4 | 3.6 | 2.4 | 3.6 | 2.4 |
Current | Amp | 15 | 18 | 15 | 18 | 15 | 18 |
Vacuum | mBar | 230 | 210 | 230 | 210 | 230 | 210 |
Airflow (max) | cfm | 354 | 285 | 354 | 285 | 354 | 285 |
m³/h | 585 | 530 | 585 | 530 | 585 | 530 | |
Filter area | m2 | 3.86 | |||||
Filter capacity | 0.3μm>99.9% | ||||||
Filter cleaning | Manual filter cleaning | Automatic electrical | Automatic Jet filter cleaning | ||||

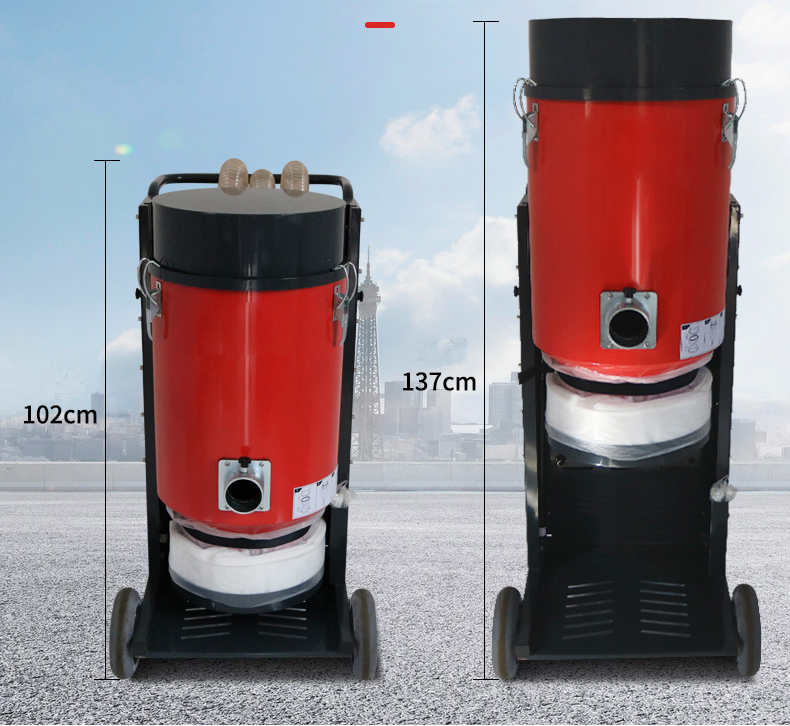

Dimension | mm | 850X620X1080/1430 | |||||
Weight | kg | 77 | 81 | 83 | |||
Specification:
Model | Unit | EFV36M | EFV36M | EFV36A | EFV36A | EFV36P | EFV36P |
Voltage | V | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ |
Power(kw) | KW | 3.6 | 2.4 | 3.6 | 2.4 | 3.6 | 2.4 |
Current | Amp | 15 | 18 | 15 | 18 | 15 | 18 |
Vacuum | mBar | 230 | 210 | 230 | 210 | 230 | 210 |
Airflow (max) | cfm | 354 | 285 | 354 | 285 | 354 | 285 |
m³/h | 585 | 530 | 585 | 530 | 585 | 530 | |
Filter area | m2 | 3.86 | |||||
Filter capacity | 0.3μm>99.9% | ||||||
Filter cleaning | Manual filter cleaning | Automatic electrical | Automatic Jet filter cleaning | ||||
Dimension | mm | 850X620X1080/1430 | |||||
Weight | kg | 77 | 81 | 83 | |||
Carton
