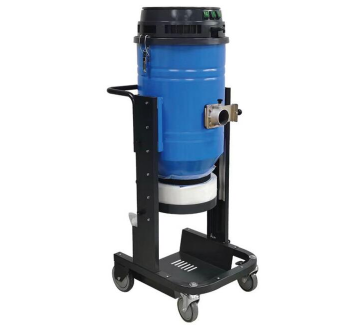

ESV36 110V/220V single phase dust collector
Dusting and cleaning the epoxy ground after grinding to provide a dust-free environment.
Can be used either alone or together with grinders or milling machines to provide a dust-free environment.
Specification:
Model | Unit | ESV36M | ESV36M | ESV36A | ESV36A | ESV36P | ESV36P |
Voltage | V | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ |
Power(kw) | KW | 3.6 | 2.4 | 3.6 | 2.4 | 3.6 | 2.4 |
Current | Amp | 12 | 16 | 12 | 16 | 12 | 16 |
Vacuum | mBar | 230 | 210 | 230 | 210 | 230 | 210 |
Airflow (max) | cfm | 354 | 285 | 354 | 285 | 354 | 285 |
m³/h | 585 | 530 | 585 | 530 | 585 | 530 | |
Filter area | m2 | 3.86 | |||||
Filter capacity | 0.3μm>99.9% | ||||||
Filter cleaning | Manual filter cleaning | Automatic electrical | Automatic Jet filter cleaning | ||||
Dimension | mm | 850X620X1080/1430 | |||||
Weight | kg | 57 | 61 | 63 | |||
Specification:
Model | Unit | ESV36M | ESV36M | ESV36A | ESV36A | ESV36P | ESV36P |
Voltage | V | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ | 220V/50HZ | 110V/60HZ |
Power(kw) | KW | 3.6 | 2.4 | 3.6 | 2.4 | 3.6 | 2.4 |
Current | Amp | 12 | 16 | 12 | 16 | 12 | 16 |
Vacuum | mBar | 230 | 210 | 230 | 210 | 230 | 210 |
Airflow (max) | cfm | 354 | 285 | 354 | 285 | 354 | 285 |
m³/h | 585 | 530 | 585 | 530 | 585 | 530 | |

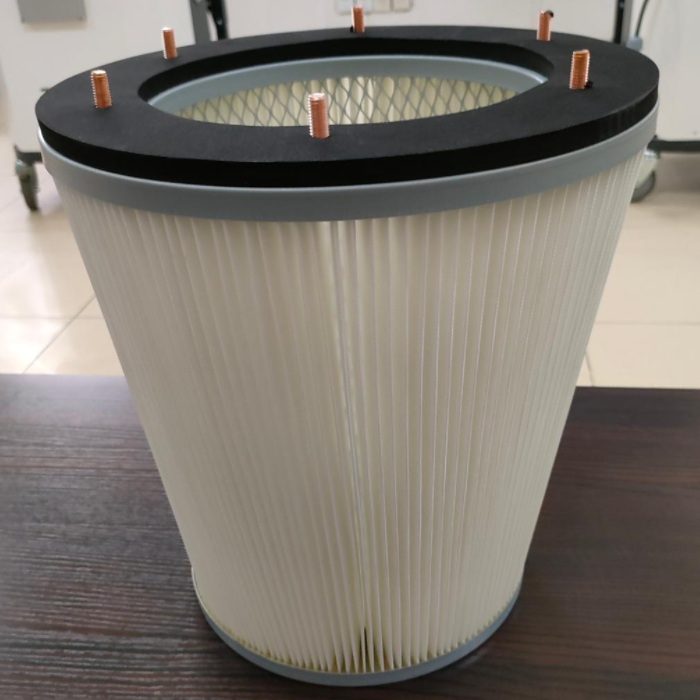

Filter area | m2 | 3.86 | |||||
Filter capacity | 0.3μm>99.9% | ||||||
Filter cleaning | Manual filter cleaning | Automatic electrical | Automatic Jet filter cleaning | ||||

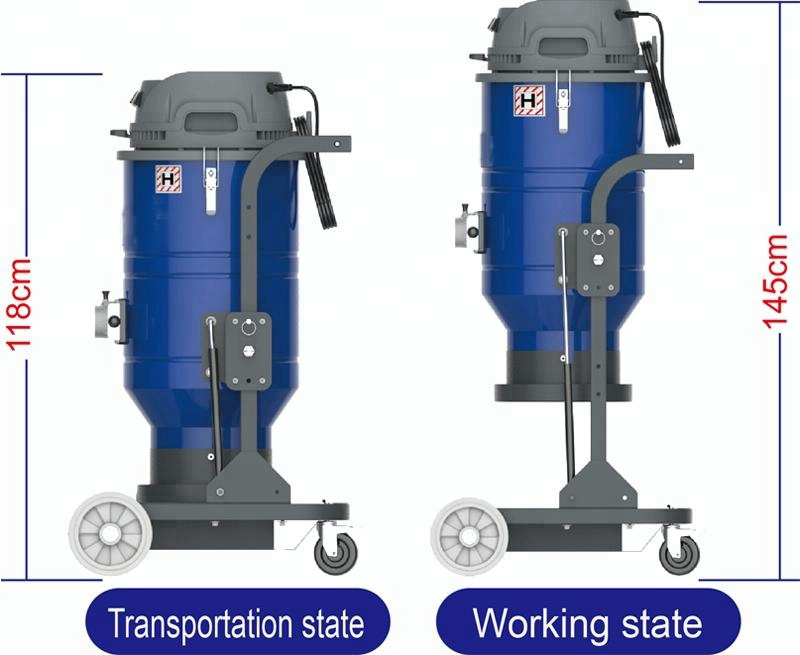

Dimension | mm | 850X620X1080/1430 | |||||
Weight | kg | 57 | 61 | 63 | |||
carton
