Product/User Benefits:
* Increased productivity and grinding performance
* Easy handling thanks to ergonomic control elements, fixed speed as well as low noise and vibration levels
* Fatigue-proof working and reduction of side forces because of outstanding machine balance
* Maximum durability and load capacity due to very robust construction
* Impressive mobility as well as trouble-free transportation thanks to detachable machine parts
* Time saving patented quick tool fixing system
* Dust-free operation because of floating cover in combination with reliable dust collection system
Fields of applications:
* Grinding concrete/epoxy floor/ solidified floor/ terrazzo floor /granite floor /natural marble floor /diamond abrasion
resistant floor /self leveling cement,etc ,places requiring surface treatment
* Removal of paint, epoxy, glue and other coatings from concrete
* Preparation of concrete for installation of new flooring/coating
* Elimination of irregularities in concrete
* Repair of damaged concrete
* Sealing preparation
* Renovation works
Product Features:
* It is safer to use IP67 waterproof and dustproof power plug
* High-power heavy-duty body can improve the cutting rate of ground, the ash output is large and the efficiency is high.
The back-and-forth reversible counterweight iron is adaptable to a variety of surfaces.Achieve double efficiency, perfect effect!
* Famous brand frequency converter with super variable speed control function ensures the machine work steady
* Original patented retractable compensation structure, suitable for uneven ground, reduce dust and flying stone, improve
construction environment safety
* With toolbox, portable storage of accessories
* The frequency conversion motor can meet the grinding requirements of industrial floor for a long time and heavy task,
and can work continuously for 24 hours.
* Multi-functional magnetic disc is convenient to install, limit pile locking disc, construction is safer
*Fault detection, through the fault code according to the reference table to find out the corresponding problems
Specification:

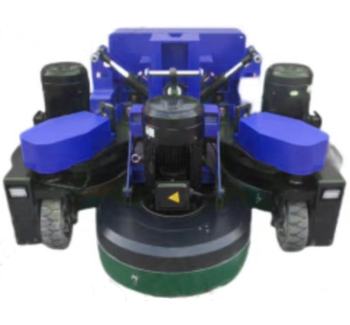

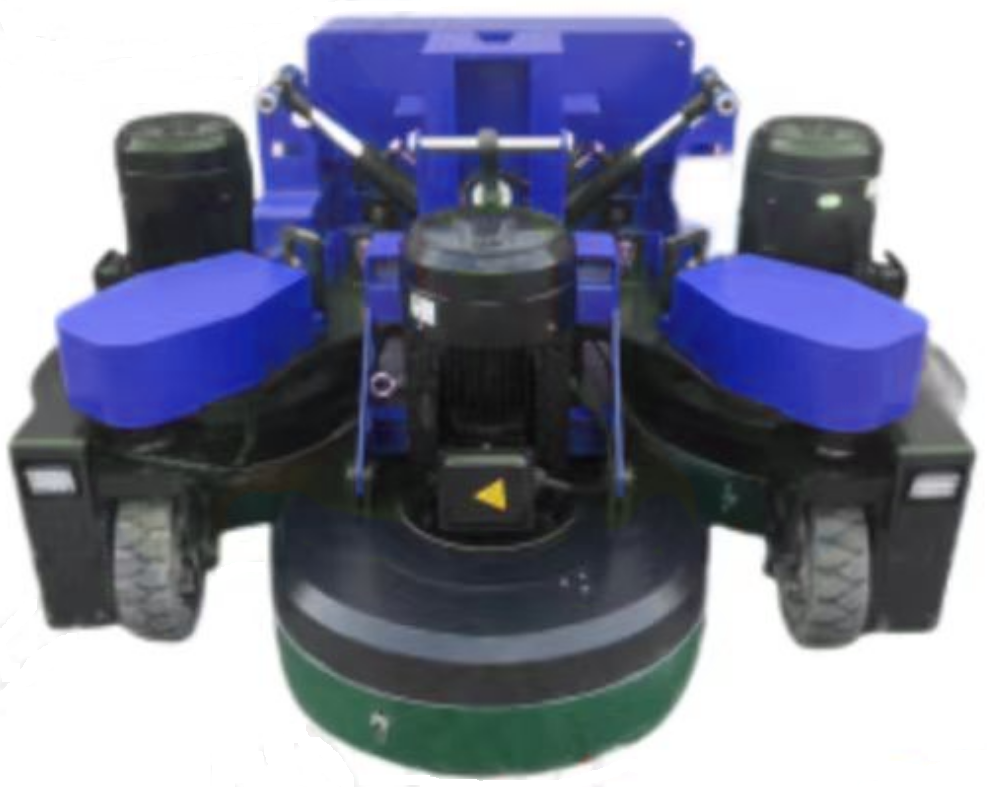

Model | EG2400 remote control |
Working Area | 2400mm |
Voltage | 380-460V three phases |
Grinding Motor Power | 15kw*3 |
Inverter power | 22kw*3 |
Walking motor power | 1.5kw*2(servo) 1kw*2 |
Walking speed | 0-15m/min |
HZ | 50/60HZ |
AMP | 80A |
Type | Gear driven type |
Grinding plate RPM/Min | 0-1500 |
Weight | 1800kg |
Grinding disk size | 250mm*12 |
Packing size | 190*240*103cm |
Cable | 3*10+1*6 |
Specification:
Model | EG2400 remote control |
Working Area | 2400mm |
Voltage | 380-460V three phases |
Grinding Motor Power | 15kw*3 |
Inverter power | 22kw*3 |
Walking motor power | 1.5kw*2(servo) 1kw*2 |
Walking speed | 0-15m/min |
HZ | 50/60HZ |
AMP | 80A |
Type | Gear driven type |
Grinding plate RPM/Min | 0-1500 |
Weight | 1800kg |
Grinding disk size | 250mm*12 |
Packing size | 190*240*103cm |
Cable | 3*10+1*6 |
Iron frame+Polywood case
