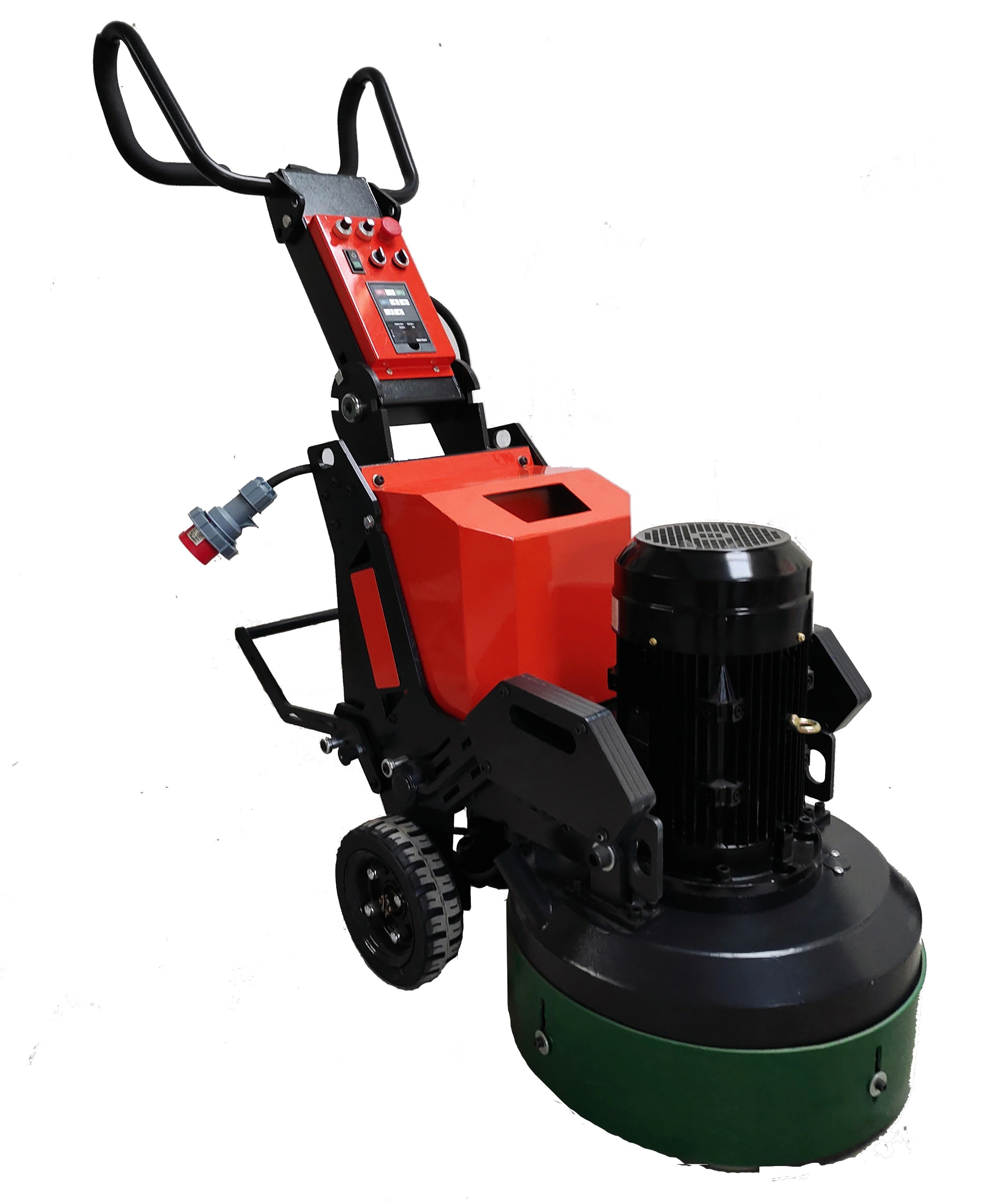

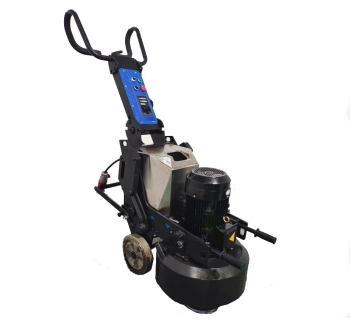

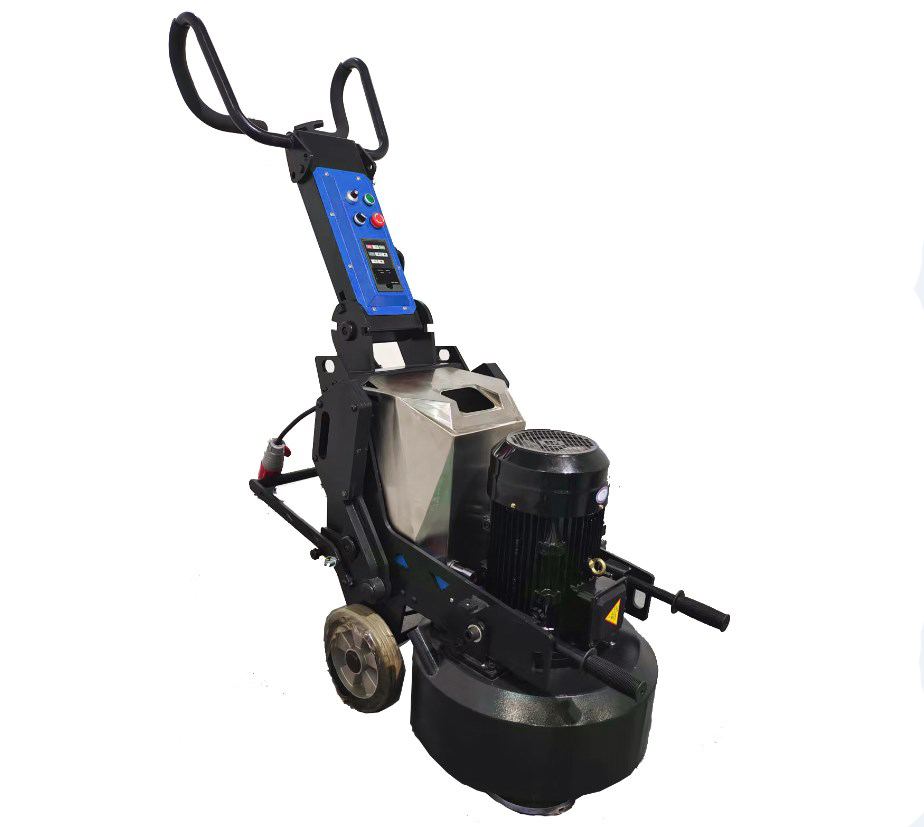

EG550

planetary system concrete floor grinder polisher grinding polishing machine

Applications:

♦Planetary counter rotation system for excellent grinding and polishing surfaces.

♦Completely gear driven system for a superior duration and reliability

 without belt transmission ensuring long life.

♦Rotating speed can be changed with a frequency converter, FWD&REV adjustable

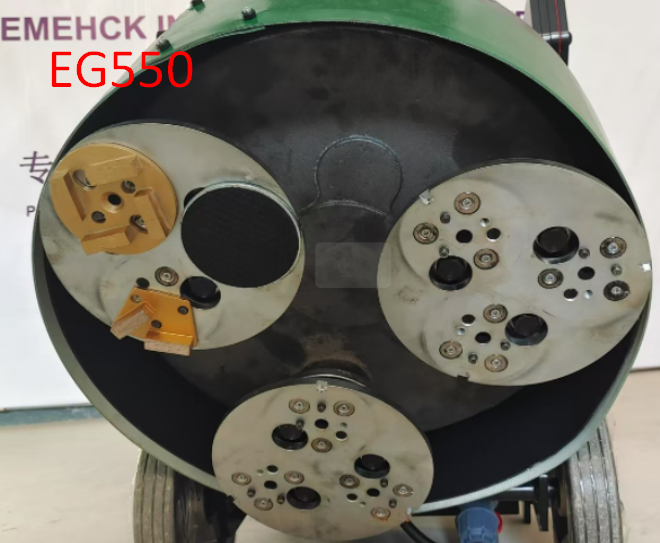

♦Innovative quick shift polishing tools with magnetic disk and velcro to save the time.
♦Pretreating and leveling concrete surfaces for epoxy coatings.
♦Wet and dry operation with intergraded water deliver system and can be

 connected with vacuum cleaner.
♦Grinding and Polishing for concrete, marble, granite, terrazzo etc

♦Removing painting, epoxy, urethane, glues, polyurethane and mastics coatings

♦Comfortable operating with 180 degree forward or backward adjustable handle .
♦The motor can be separated from the main body for convenient transportation.

♦Can work in the dark area with High-lighting LED light

Specification:

Model

EG550 self propelled

Working Area

550mm

Voltage

220-240/380-460V three phases

Motor Power

10hp(7.5kw)

Inverter power

10hp(7.5kw)

HZ

50/60HZ

AMP

18A

Type

Gear driven type

Main plate RPM/Min

0-450

Grinding plate RPM/Min

300-150

Weight

300kg

Grinding disk size

220mm*3

Water tank

30L

Noise

65DB

Packing size

115*60*110cm

Extra weight

20kg*2


Specification:

Model

EG550 self propelled

Working Area

550mm

Voltage

220-240/380-460V three phases

Motor Power

10hp(7.5kw)

Inverter power

10hp(7.5kw)

HZ

50/60HZ

AMP

18A

Type

Gear driven type

Main plate RPM/Min

0-450

Grinding plate RPM/Min

300-150

Weight

300kg

Grinding disk size

220mm*3

Water tank

30L

Noise

65DB

Packing size

115*60*110cm

Extra weight

20kg*2


Polywood case
